STOCK PLAN 1010 - THE MAX



TOTAL HEATED SQ FEET= 1883
MAIN LEVEL SQ FEET= 1441
SECOND LEVEL SQ FEET= 392
# OF BEDS = 3
# OF BATHS = 3
# OF GARAGE BAYS = 0
# OF STORIES = 1.5
EXTERIOR FACING WOOD SIDING

Walkout Basement Avail for Extra Fee w/ Purch of Plans (Y/N) NO
Crawlspace Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Slab Avail for Extra Fee w/ Purch of Plans (Y/N) NO
Pier/Pole Avail for Extra Fee w/ Purch of Plans (Y/N) NO

Master Bedroom Floor Location (Main, Upper, Lower) MAIN
Master Bedroom Split from Other Bedrms (Y/N) YES
Laundry Floor Location (Lower, Main, Upper, Third) MAIN
Ceiling Height Main Floor (Feet in this Column) VARIES
Ceiling Height Upper Floor (Feet in this Column) VARIES
Max Ridge Height (Feet in this Column) 25'
Max Ridge Height (Inches in this Column) 2"
Primary Roof Pitch (Ratio) 8/12
Live Roof Load (Lbs/Sq Ft) 40
Dead Roof Load (Lbs/Sq Ft) 20
Stick Roof Framing (Y/N) YES
Truss Roof Framing (Y/N) NO
R Value of Exterior Walls 21
R Value of Ceilings 38
Wall Exterior (2x4, 2x6, Both) 2x6

Blueprint Size 24x36
# of Sheets per Set 7
Materials List Available (Y/N) NO
True Reverse Available (Y/N) YES
Fireplace Available (Y/N) NO
Special Rooms LOFT

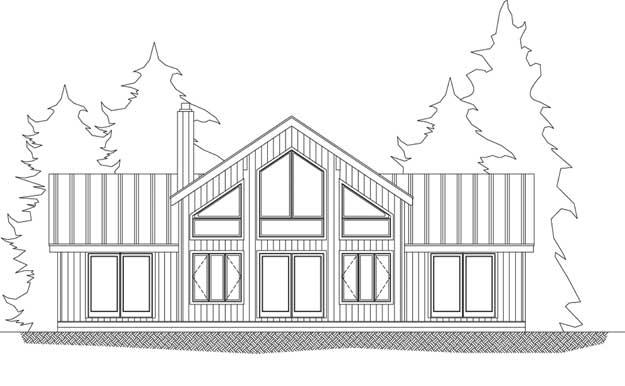

ELEVATION

The Max Elevation

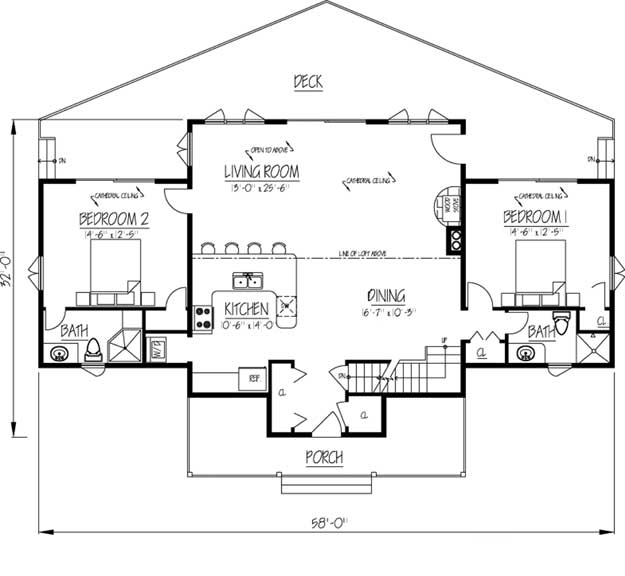

MAIN FLOOR PLAN



The Max Main Floor Plan

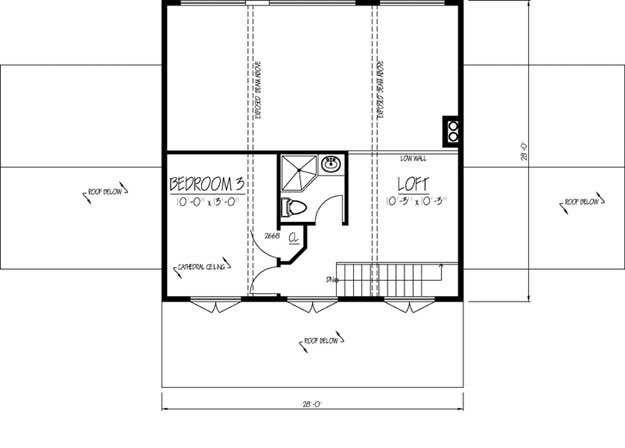

UPPER FLOOR PLAN



Max Floor Plan Upper
