STOCK PLAN 1002 - THE LARISSA



TOTAL HEATED SQ FEET= 2655
MAIN LEVEL SQ FEET= 1512
SECOND LEVEL SQ FEET= 1143
# OF BEDS = 3
# OF BATHS = 3
# OF GARAGE BAYS = 3
# OF STORIES = 2
EXTERIOR FACING SIDING

Walkout Basement Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Crawlspace Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Slab Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Pier/Pole Avail for Extra Fee w/ Purch of Plans (Y/N) NO

Master Bedroom Floor Location (Main, Upper, Lower) UPPER
Master Bedroom Split from Other Bedrms (Y/N) YES
Laundry Floor Location (Lower, Main, Upper, Third) MAIN
Ceiling Height Main Floor (Feet in this Column) 9'
Ceiling Height Upper Floor (Feet in this Column) 8'
Max Ridge Height (Feet in this Column) 27'
Max Ridge Height (Inches in this Column) 1'
Primary Roof Pitch (Ratio) 9/12
Secondary Roof Pitch (Ratio) 18/12
Live Roof Load (Lbs/Sq Ft) 40
Dead Roof Load (Lbs/Sq Ft) 20
Stick Roof Framing (Y/N) YES
Truss Roof Framing (Y/N) NO
R Value of Exterior Walls 21
R Value of Ceilings 38
Wall Exterior (2x4, 2x6, Both) 2x6

Blueprint Size 24x36
# of Sheets per Set 8
Materials List Available (Y/N) NO
True Reverse Available (Y/N) YES
Fireplace Available (Y/N) YES
Master Suite Features1 LARGE SLEEPING AREA
Master Suite Features2 MASTER BATH
Kitchen Features1 BREAKFAST AREA



SIDE ELEVATION

Larissa Side Elevation

Larissa Side Elevation



REAR ELEVATION

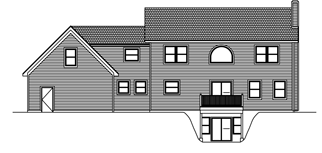

Larissa Rear Elevation



MAIN(L) & UPPER(R) FLOOR PLAN

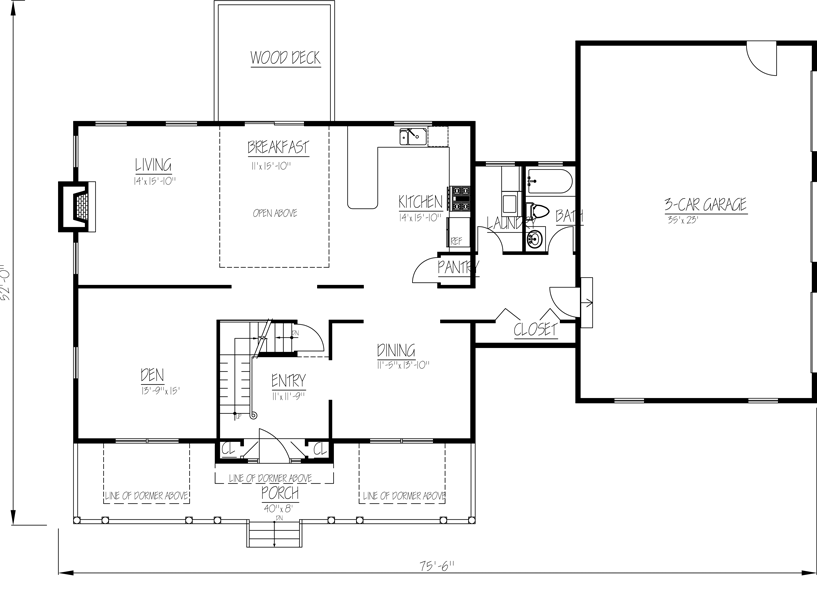

Larissa Floor Plan Main

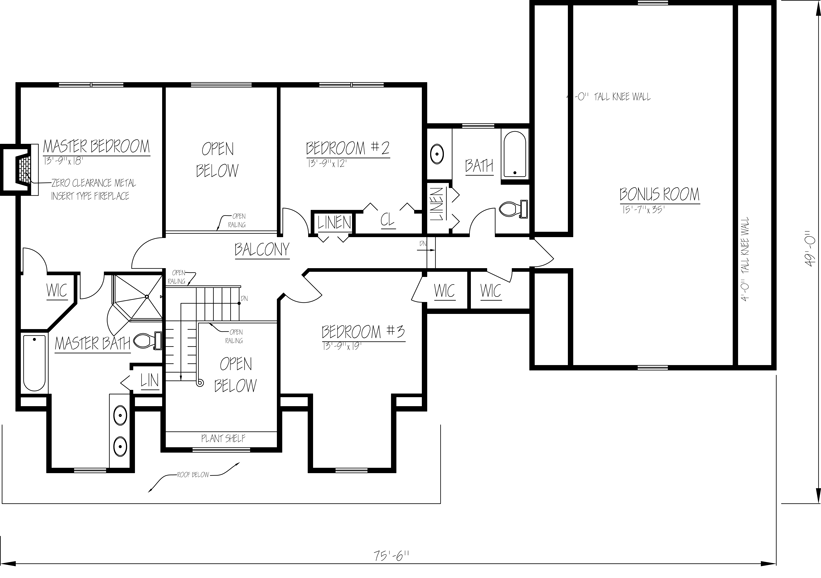

Larissa Floor Plan Upper



PRICING & PAYMENT

Questions or interested in purchasing this plan? Contact us at ken@unlimitedhousedesign.com or call 845-614-7149.

The Larissa Stock Plan

The Larissa Foundation Options

Options and/or Add-Ons
