STOCK PLAN 1008 - THE BARBARA



TOTAL HEATED SQ FEET= 2767
MAIN LEVEL SQ FEET= 2007
SECOND LEVEL SQ FEET= 260
# OF BEDS = 4
# OF BATHS = 2.5
# OF GARAGE BAYS = 0
# OF STORIES = 1.5
EXTERIOR FACING BOARD & BATTON/STONE

Walkout Basement Avail for Extra Fee w/ Purch of Plans (Y/N) NO
Crawlspace Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Slab Avail for Extra Fee w/ Purch of Plans (Y/N) NO
Pier/Pole Avail for Extra Fee w/ Purch of Plans (Y/N) NO

Master Bedroom Floor Location (Main, Upper, Lower) UPPER
Master Bedroom Split from Other Bedrms (Y/N) YES
Laundry Floor Location (Lower, Main, Upper, Third) MAIN
Ceiling Height Main Floor (Feet in this Column) 8'
Ceiling Height Upper Floor (Feet in this Column) 9'
Max Ridge Height (Feet in this Column) 21'
Max Ridge Height (Inches in this Column) 11"
Primary Roof Pitch (Ratio) 9/12
Secondary Roof Pitch (Ratio) 12/12
Live Roof Load (Lbs/Sq Ft) 40
Dead Roof Load (Lbs/Sq Ft) 20
Stick Roof Framing (Y/N) YES
Truss Roof Framing (Y/N) NO
R Value of Exterior Walls 21
R Value of Ceilings 30
Wall Exterior (2x4, 2x6, Both) 2x6

Blueprint Size 24x36
# of Sheets per Set 11
Materials List Available (Y/N) NO
True Reverse Available (Y/N) YES
Fireplace Available (Y/N) NO
Master Suite Features1 LARGE WALK IN CLOSET
Master Suite Features2 MASTER BATH
Master Suite Features3 CATHEDRAL CEILING
Special Rooms1 LOFT
Extra Features1 MULTI-LEVEL DECK
Kitchen Features1 LARGE PANTRY

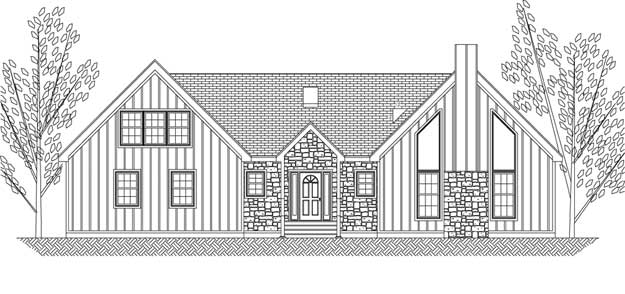

ELEVATION

The Barbara Elevation

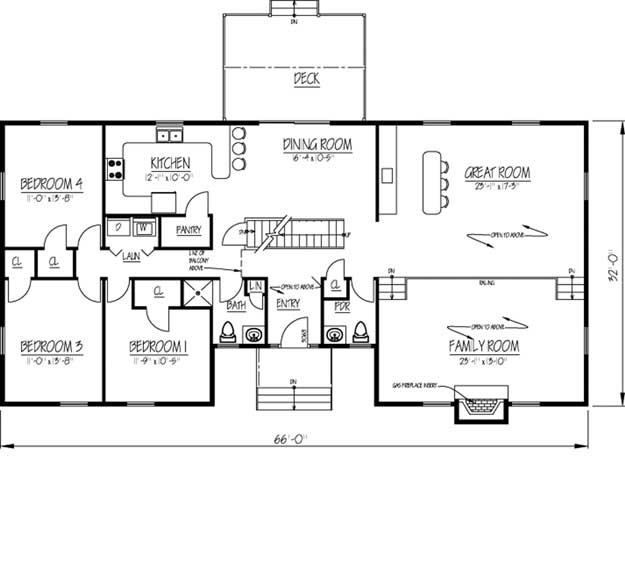

MAIN FLOOR PLAN



The Barbara Main Floor Plan

UPPER FLOOR PLAN



The Barbara Upper Floor Plan

PRICING & PAYMENT

Questions or interested in purchasing this plan? Contact us at ken@unlimitedhousedesign.com or call 845-614-7149.
