The Alexis Stock Plan

STOCK PLAN 1003 - THE ALEXIS



TOTAL HEATED SQ FEET= 4808
MAIN LEVEL SQ FEET= 1778
SECOND LEVEL SQ FEET= 1252
BASEMENT/LOWER LEVEL SQ FEET= 1778
# OF BEDS = 3
# OF BATHS = 3
# OF HALF BATHS = 2
# OF GARAGE BAYS = 0
# OF STORIES = 2
EXTERIOR FACING SIDING

Walkout Basement Avail for Extra Fee w/ Purch of Plans (Y/N) NO
Crawlspace Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Slab Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Pier/Pole Avail for Extra Fee w/ Purch of Plans (Y/N) NO

Master Bedroom Floor Location (Main, Upper, Lower) UPPER
Master Bedroom Split from Other Bedrms (Y/N) YES
Laundry Floor Location (Lower, Main, Upper, Third) LOWER
Ceiling Height Main Floor (Feet in this Column) 9'
Ceiling Height Upper Floor (Feet in this Column) 12'
Max Ridge Height (Feet in this Column) 27'
Max Ridge Height (Inches in this Column) 3'
Primary Roof Pitch (Ratio) 9/12
Secondary Roof Pitch (Ratio) 3/12
Live Roof Load (Lbs/Sq Ft) 40
Dead Roof Load (Lbs/Sq Ft) 20
Stick Roof Framing (Y/N) YES
Truss Roof Framing (Y/N) NO
R Value of Exterior Walls 21
R Value of Ceilings 38
Wall Exterior (2x4, 2x6, Both) 2x6

Blueprint Size 24x36
# of Sheets per Set 11
Materials List Available (Y/N) NO
True Reverse Available (Y/N) YES
Fireplace Available (Y/N) YES
Master Suite Features1 PRIVATE BALCONY
Master Suite Features2 MASTER BATH
Master Suite Features3 WALK IN CLOSET
Master Suite Features4 FRENCH DOORS
Special Rooms1 LIBRARY
Special Rooms1 DEN
Kitchen Features1 EAT-AT-BAR



SIDE ELEVATION

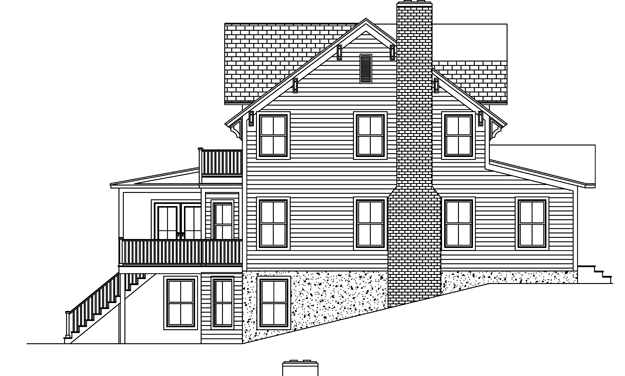

The Alexis Side Elevation 1

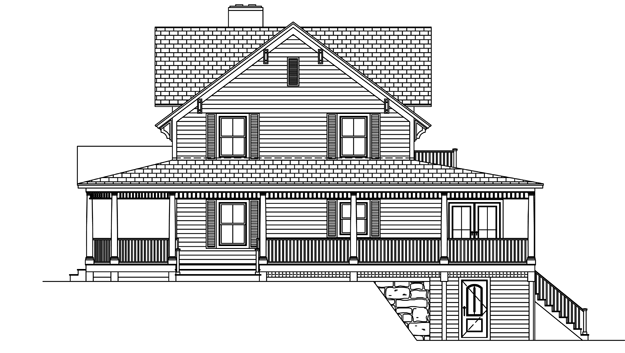

The Alexis Side Elevation 2

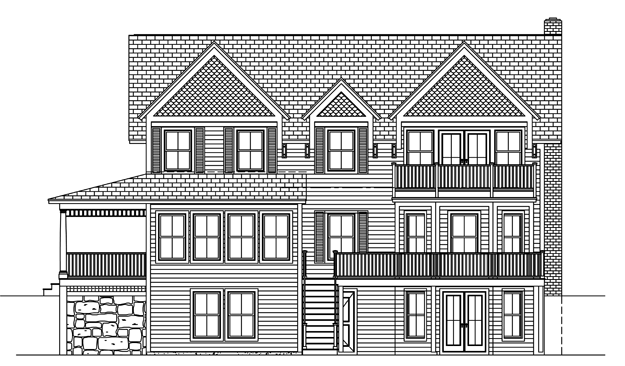

REAR ELEVATION

The Alexis Rear Elevation

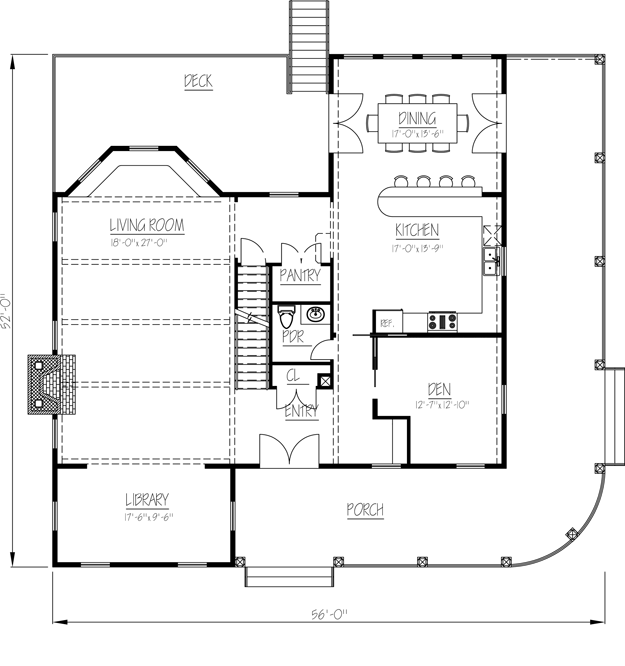

MAIN FLOOR PLAN

The Alexis Main Floor Plan

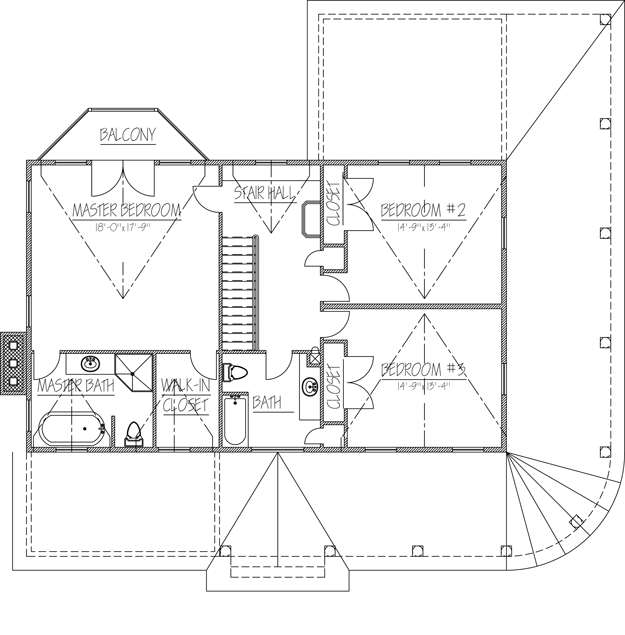

UPPER FLOOR PLAN

The Alexis Upper Floor Plan

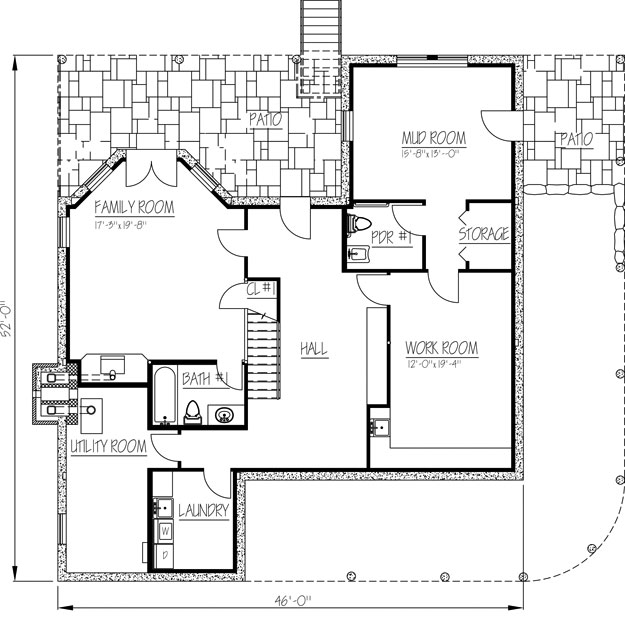

BASEMENT/LOWER FLOOR PLAN

The Alexis Basement/Lower Floor Plan

PRICING & PAYMENT

Questions or interested in purchasing this plan? Contact us at ken@unlimitedhousedesign.com or call 845-614-7149.

The Alexis Stock Plan

The Alexis Foundation Options

Options and/or Add-Ons
