STOCK PLAN 1001- THE JAMIE



TOTAL HEATED SQ FEET= 1510
MAIN LEVEL SQ FEET= 670
SECOND LEVEL SQ FEET= 840
# OF BEDS = 3
# OF BATHS = 2.5
# OF GARAGE BAYS = 0
# OF STORIES = 2
EXTERIOR FACING SIDING

Walkout Basement Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Crawlspace Avail for Extra Fee w/ Purch of Plans (Y/N) NO
Slab Avail for Extra Fee w/ Purch of Plans (Y/N) YES
Pier/Pole Avail for Extra Fee w/ Purch of Plans (Y/N) NO

Master Bedroom Floor Location (Main, Upper, Lower) UPPER
Master Bedroom Split from Other Bedrms (Y/N) NO
Laundry Floor Location (Lower, Main, Upper, Third) MAIN
Ceiling Height Main Floor (Feet in this Column) 8'
Ceiling Height Upper Floor (Feet in this Column) 8'
Max Ridge Height (Feet in this Column) 24'
Max Ridge Height (Inches in this Column) 4'
Primary Roof Pitch (Ratio) 8/12
Secondary Roof Pitch (Ratio) N/A
Live Roof Load (Lbs/Sq Ft) 40
Dead Roof Load (Lbs/Sq Ft) 20
Stick Roof Framing (Y/N) YES
Truss Roof Framing (Y/N) NO
R Value of Exterior Walls 21
R Value of Ceilings 38
Wall Exterior (2x4, 2x6, Both) 2x6

Blueprint Size 24x36
# of Sheets per Set 7
Materials List Available (Y/N) NO
True Reverse Available (Y/N) YES
Fireplace Available (Y/N) NO
Master Suite Features1 LARGE SLEEPING AREA
Master Suite Features2 MASTER BATH



SIDE ELEVATION

Jamie Side Elevation



REAR ELEVATION

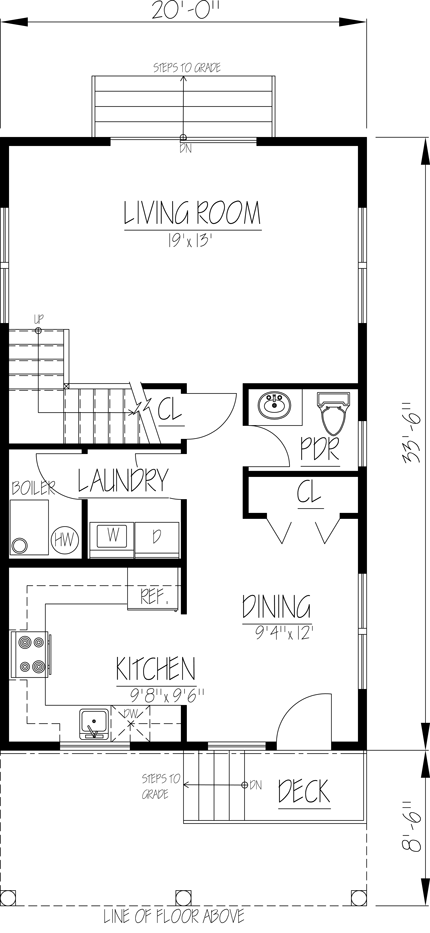

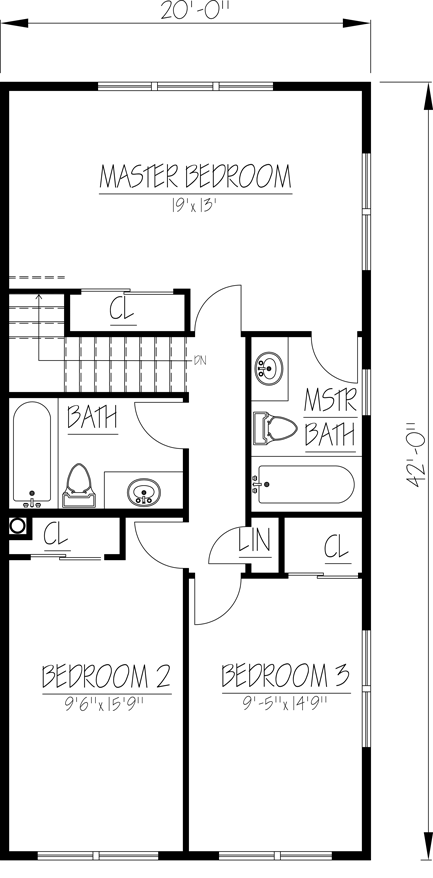

MAIN(L) & UPPER(R) FLOOR PLAN

Jamie Floor Plan



PRICING & PAYMENT

Questions or interested in purchasing this plan? Contact us at ken@unlimitedhousedesign.com or call 845-614-7149.

The Jamie Stock Plan

The Jamie Foundation Options

Options and/or Add-Ons
